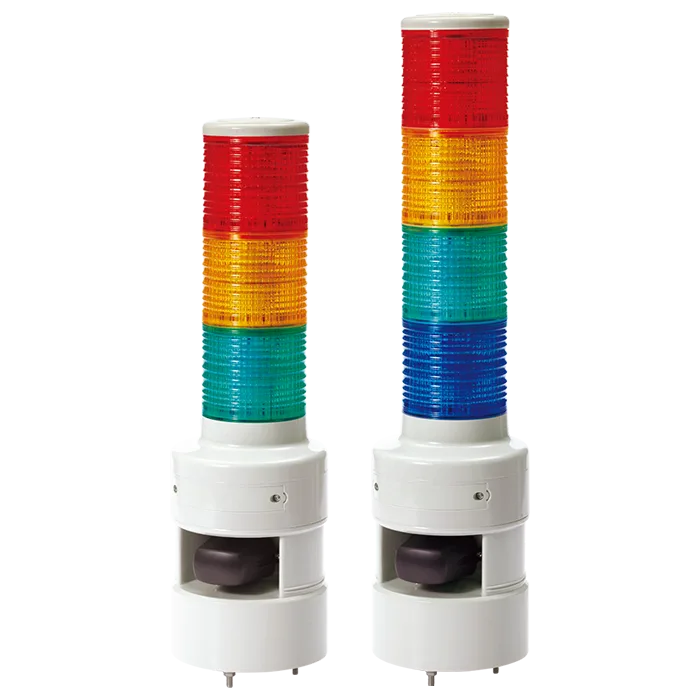

STND100L
LED Steady/Flashing Signal Light & Electric Horn Combination Max.105dB
Qlight chính hãng · STND Series
STNDL — LED Steady/Flashing Lights & Electric Horn Max.105dB
STNDL Qlight — LED Steady/Flashing Lights & Electric Horn Max.105dB. Thông số theo catalog Qlight, báo giá chính hãng từ Fast Group Engineering.
Product Feature30 Built-in Sounds (Max.105dB at 1m), 30 MP3 User-Defined Sounds (Max.98dB at 1m)
VoltageDC:12V,24V · AC:110V-220V
DimensionLens Diameter: Ø80 · Body Diameter: Ø119 · Height: 267-547
MaterialsLens-AS · Housing-ABS · Reflector-Heat resistant ABS
Protection ratingIP54
LED Steady/Flashing TypeIP54-30℃ ~ +50℃Horn105dBSD Card(MP3)98dBNPN-Transistor TypeRoHS
Giới thiệu
STNDL trong hệ thống tín hiệu công nghiệp
STNDL là model Qlight thuộc STND Series trong Đèn cảnh báo kết hợp còi báo Qlight. LED Steady/Flashing Lights & Electric Horn Max.105dB.
Fast Group Engineering là nhà phân phối được Qlight cấp Certificate of Distributor, cung cấp STNDL chính hãng tại Việt Nam cho nhà máy, nhà thầu EPC và đơn vị tích hợp hệ thống: đối chiếu cấu hình theo đúng mã đặt hàng, kiểm tra tồn kho và lead time, nhập khẩu kèm CO/CQ.
Tính năng theo catalog Qlight
- Combination of warning light and horn allows transmission of both visual and audible signals together
- Appropriate sound tones can be chosen depending on the various working environments among the various type of available sound tones
- Sound tone selector and volume controller in front of the device allows convenient use
- SDcard type allows user defined sound tone
- Built-in 30 sound tones, support binary and bit input modes
- Bit input mode consists of 5 sound types with 6 groups. Choose one of the groups to play 5 sounds from that group.(MP3 is separate from the 6 groups)
- Lens colors are interchangeable
- Ambient operating temperature -30°C to +50°C
- Compliant with RoHS directive
Thông số kỹ thuật
Thông số STNDL theo catalog Qlight
Chỉ hiển thị các trường có trong catalog gốc; trường trống nghĩa là catalog không nêu, cần tra datasheet của mã đặt hàng cụ thể.
Product Feature30 Built-in Sounds (Max.105dB at 1m), 30 MP3 User-Defined Sounds (Max.98dB at 1m)
VoltageDC:12V,24V · AC:110V-220V
DimensionLens Diameter: Ø80 · Body Diameter: Ø119 · Height: 267-547
MaterialsLens-AS · Housing-ABS · Reflector-Heat resistant ABS
Protection ratingIP54
| Model number | layer | Voltage | Sound Pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| STNDL Steady STNDLF Steady/Flashing | 1 | DC12V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.19kg AC-1.58kg | R-Red |
| STNDL Steady STNDLF Steady/Flashing | 1 | DC24V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.19kg AC-1.58kg | R-Red |
| STNDL Steady STNDLF Steady/Flashing | 1 | AC110V -220V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.19kg AC-1.58kg | R-Red |
| STNDL Steady STNDLF Steady/Flashing | 2 | DC12V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.43kg AC-1.82kg | R-Red G-Green |
| STNDL Steady STNDLF Steady/Flashing | 2 | DC24V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.43kg AC-1.82kg | R-Red G-Green |
| STNDL Steady STNDLF Steady/Flashing | 2 | AC110V -220V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.43kg AC-1.82kg | R-Red G-Green |
| STNDL Steady STNDLF Steady/Flashing | 3 | DC12V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.67kg AC-2.06kg | R-Red A-Amber G-Green |
| STNDL Steady STNDLF Steady/Flashing | 3 | DC24V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.67kg AC-2.06kg | R-Red A-Amber G-Green |
| STNDL Steady STNDLF Steady/Flashing | 3 | AC110V -220V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.67kg AC-2.06kg | R-Red A-Amber G-Green |
| STNDL Steady STNDLF Steady/Flashing | 4 | DC12V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.91kg AC-2.30kg | R-Red A-Amber G-Green B-Blue |
| STNDL Steady STNDLF Steady/Flashing | 4 | DC24V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.91kg AC-2.30kg | R-Red A-Amber G-Green B-Blue |
| STNDL Steady STNDLF Steady/Flashing | 4 | AC110V -220V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-1.91kg AC-2.30kg | R-Red A-Amber G-Green B-Blue |
| STNDL Steady STNDLF Steady/Flashing | 5 | DC12V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-2.15kg AC-2.54kg | R-Red A-Amber G-Green B-Blue W-White |
| STNDL Steady STNDLF Steady/Flashing | 5 | DC24V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-2.15kg AC-2.54kg | R-Red A-Amber G-Green B-Blue W-White |
| STNDL Steady STNDLF Steady/Flashing | 5 | AC110V -220V | · WS-Warning sound · WP-Special warning sound 1st group · WM-Melody · WA-Alarm · WO-Special warning sound 2nd group · WN-Special warning sound 3rd group · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.105dB (Based on WS-Ch5) · MP3: Max.98dB | — | DC-2.15kg AC-2.54kg | R-Red A-Amber G-Green B-Blue W-White |
| Voltage | DC12V | DC24V | AC110V-220V |
|---|---|---|---|
| Light source current(1 layer) | 160mA | 95mA | Max.70mA |
| Signal sound current | 285mA | 185mA | Max.105mA |
| Sound Category | Sound Tone | Channel | Sound |
|---|---|---|---|
| 5 Warning Sounds | Fire.A-ANG Emergency WA-U(Yelp) Ambulance PI-PO(Hi-low) Machinery Fault High Expansion | Ch1 Ch2 Ch3 Ch4 Ch5 | — |
| 5 Special Warning Sounds (1st Group) | Fire.A-ANG Abandon Alarm Machunery Fault High Expansion 7 Short PI. / 1 Long | Ch1 Ch2 Ch3 Ch4 Ch5 | — |
| 5 Melodies | Sweet Home For Elise Cuckoo's Waltz Piano Sonata Turkish March | Ch1 Ch2 Ch3 Ch4 Ch5 | — |
| 5 Alarms | Beep Intermittent Door Chime Phone Ring PI.PI.PI. Short Interval Tripping Beat | Ch1 Ch2 Ch3 Ch4 Ch5 | — |
| 5 Special Warning Sounds (2nd Group) | Rel rel rel Slow Ambulance PI-PO Wye yong Wye yong Phone ring 2 Fire.A-ANG | Ch1 Ch2 Ch3 Ch4 Ch5 | — |
| 5 Special Warning Sounds (3nd Group) | Oit Oit Pi o Pi o Slow Di o Di o Li long Li ling 911 Siren | Ch1 Ch2 Ch3 Ch4 Ch5 | — |
Mã đặt hàng của STNDL
Model này có trong catalog Qlight nhưng chưa được tách sẵn thành danh sách mã hàng trên portal. Gửi RFQ kèm điện áp, màu và kiểu lắp mong muốn — Fast Group tra mã đặt hàng chính xác trong catalog gốc của hãng và báo giá.
Phụ kiện & tài liệu
Đi kèm STNDL
Catalog, hướng dẫn sử dụng và bản vẽ CAD/STEP của STNDL do Qlight phát hành. Xem trang sản phẩm trên qlight.com hoặc gửi yêu cầu để Fast Group gửi tài liệu đúng cấu hình.
Câu hỏi thường gặp
Mua STNDL chính hãng tại Việt Nam
Model STNDL đặt hàng theo mã nào?
Model STNDL có trong catalog Qlight nhưng chưa được tách sẵn thành danh sách mã hàng trên trang này. Gửi RFQ kèm điện áp, màu và kiểu lắp mong muốn để Fast Group tra mã đặt hàng chính xác trong catalog gốc của hãng.
Cần cung cấp thông tin gì để báo giá STNDL?
Mã hàng đầy đủ (hoặc điện áp, màu, số tầng, kiểu lắp, có còi hay không), số lượng, nơi giao hàng và yêu cầu chứng từ. Đủ các mục này là báo giá được ngay.
Fast Group có phải nhà phân phối Qlight chính hãng không?
Fast Group Engineering được Qlight Co., Ltd. cấp Certificate of Distributor số QKO724_COD-FAST GROUP ENGINEERING_290911. Hàng nhập trực tiếp, đầy đủ CO/CQ.
